Wheeled spider elevator

Wheeled spider elevator

1. Product introduction:

PST type straight-arm aerial working platform is exquisitely shaped, with small pressure of rubber tracks on the ground, which can drive and work on any ground (such as delicate marble ground); the height and width of tracks are adjustable, which can drive on any uneven ground (option); it can turn around in place;

the big arm and small arm can be telescoped; the hydraulic support can be controlled separately and leveled automatically (option); the advanced safety alarm system guarantees the machine In the absolute smooth and safe state of operation; can bypass obstacles, work in a narrow space, and can work on a certain slope; work bucket can rotate 180 °; collection size is small, compact and flexible, collection height is only

1.98 meters; wireless remote control range of 100 meters (option); can start/stop the engine in the work bucket.

2. Product use:

PST type straight boom aerial working platform is up and down control, electric lift, this aerial lifting platform is characterized by small and flexible, convenient and quick, you can use a lifting platform instead of scaffolding to reach the height you need and solve your problems. At the same time, it can also save your cost and valuable time. The series of lifts are widely used in municipalities, electric power, street lights, highways, docks, advertising, gardens, community property, factories and mining enterprises workshop and other industries range of lifting operations.

3. Product features

(1) compact shape, beautiful appearance, small collection size, flexible and convenient movement.

(2) rubber tracks on the ground pressure is small, can drive and work on any road surface, especially indoor ground.

(3) The track height and width can be adjusted, which increases the approach angle and departure angle of the track and can drive on any uneven road surface with a climbing capacity of 30%.

(4) The work buckets can all be rotated 180° and can work around obstacles.

(5) Remote control operation. Easy to operate

(6) concentric telescopic technology, to ensure that the telescopic arm telescopes freely, reducing eccentric shaking.

(7) All the pipelines are built-in to avoid sun and rain, or hanging by foreign objects.

(8) Hydraulic automatic work bucket leveling, to ensure that the work bucket is always level no matter what position the work arm is in.

(9) Hydraulic outriggers can be controlled separately

(10) The maximum lifting angle of the big arm is 78°.

(11) With emergency stop device and overload protection device

4.Technical parameters

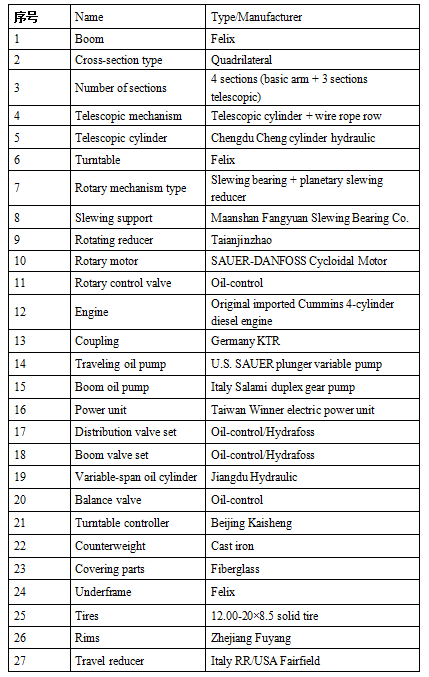

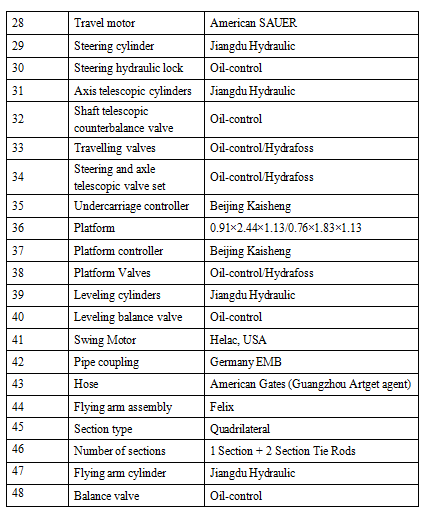

5.Main Configuration
