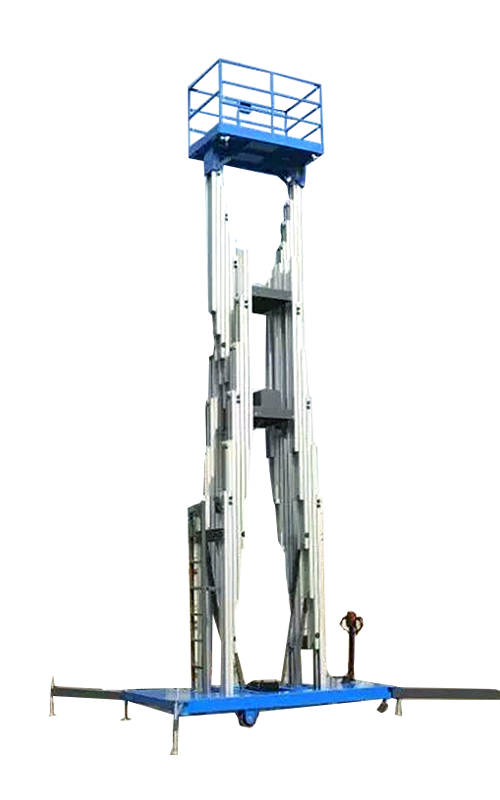

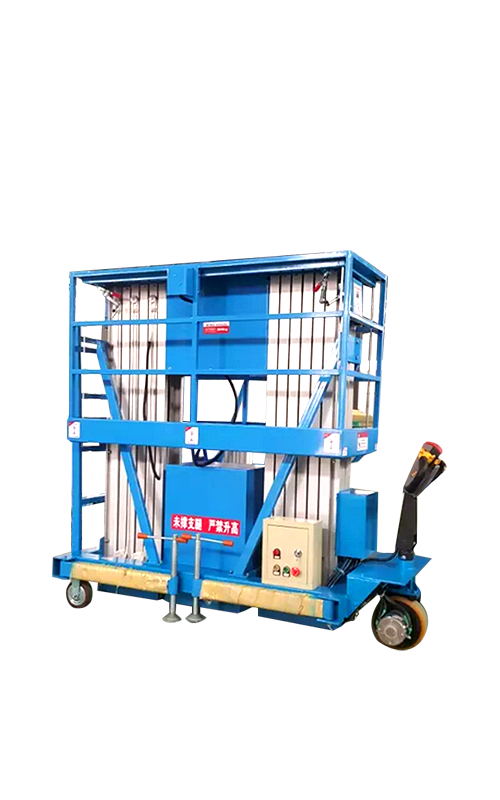

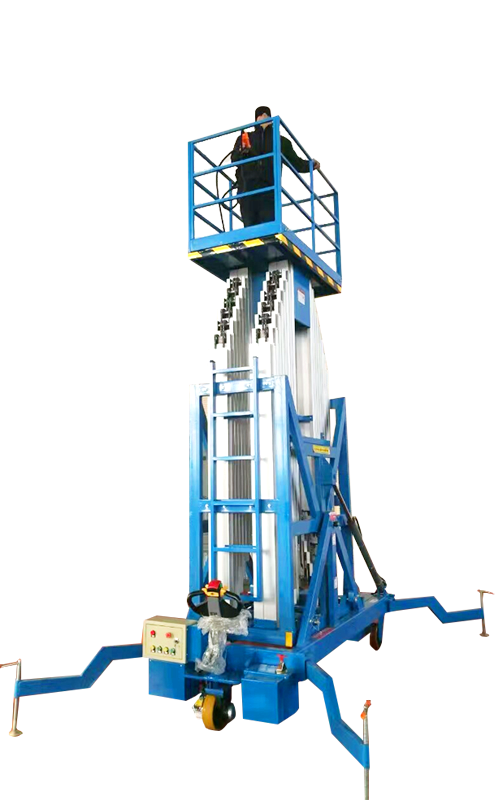

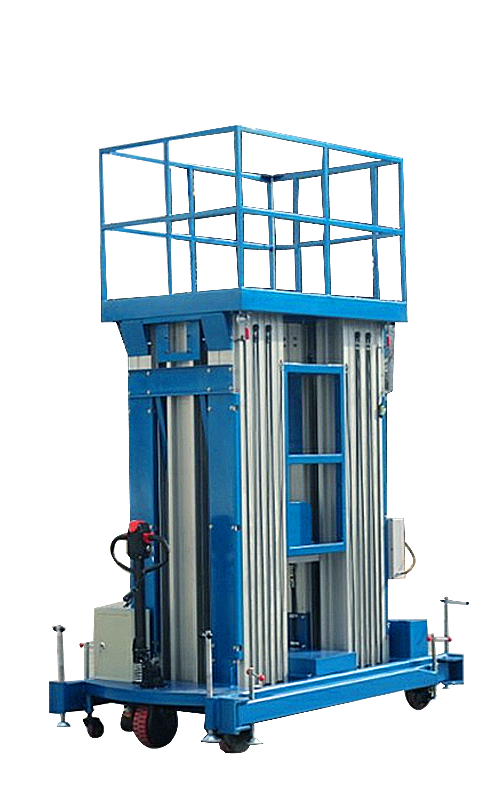

Six-mast aerial work platform
- Compact Structure design brings flexibility and agility to aerial jobs;
- Complete safety device to ensure worker’s safety and efficiency;
- Up and down two sets of control lifting system, stable lifting, safe and reliable
- Small size, light weight, flexible and convenient to move
Six-mast aerial work platform
1. Product introduction:
The six-mast aluminum alloy lifting platform series has the most rigid lifting mast system, featuring a high-strength aluminum alloy mast, interlocking system, retractable column and high-strength lifting double chains with a safety factor of 10:1 and a steel wire safety protection system to strengthen the strength and reliability of the performance and a welded high-strength steel base suitable for harsh working environments.
2. Product use:
Six mast aluminum alloy lifting platform, with beautiful appearance, small size, light weight, flexible and convenient operation; up and down two sets of control lifting system, lifting smoothly, safe and reliable. Suitable for shopping malls, hotels, restaurants, indoor decoration, exhibition, space light line, pipeline, doors and windows repair, maintenance and cleaning, suitable for area or space narrow workshop space operations, is the ideal lifting machinery, welcomed by the majority of users.
3. Product features:
Six masts lifting, the maximum working height of 26 meters. Made of high quality aluminum alloy, lightweight design, strong and safe, wide platform can load a total of two people and tools to work, more effective and safe.
Parameters of aerial work platform
Technical parameters:
Model | GTWY42-18 S |
GTWY42-20S |
GTWY42-22S |
GTWY42-24S |
Working height（m） | 20 | 22 | 24 | 26 |
Platform height（m） | 18 | 20 | 22 | 24 |
Load capacity(kg) | 150 | 150 | 150 | 150 |
Collection length(m) | 2.1 | 2.1 | 2.1 | 2.1 |
Collection Width（m） | 1.4 | 1.4 | 1.4 | 1.4 |
Collection height（m） | 2.3 | 2.45 | 2.6 | 2.75 |
Platform length（m） | 1.65 | 1.65 | 1.65 | 1.65 |
Platform width（m） | 0.9 | 0.9 | 0.9 | 0.9 |
Height of guardrail （m） |
1.0 |
1.0 |
1.0 |
1.0 |
Outrigger expansion size（m） |
2.40x2.0 |
2.70x2.40 |
2.95x2.70 |
3.10x2.90 |
Voltage (v) AC/DC | 220v | 220v | 220v | 220v |
Motor power (kw) | 2.2kw | 2.2kw | 2.2kw | 2.2kw |
Walking mode | Manpower implementati on |
Manpower implementation |
Manpower implementation | Manpower implementatio n |
Maximum allowable wind speed during operation |
12.5m/s |
12.5m/s |
12.5m/s |
12.5m/s |
System oil pressure | 12Mpa | 12Mpa | 12Mpa | 12Mpa |
Rise/fall speed (m/s)） | 0.18/0.30 | 0.18/0.30 | 0.18/0.30 | 0.18/0.30 |
Operating Weight (kg) |
1800 |
1950 |
2200 |
2400 |
